NH3 Gas Detector XAR-AP
NH3 Gas Detector XAR-AP
NH3 Gas Detector XAR-AP
Features
Portable NH3 gas detector
NH3 gas detector range: 0 ~ 500 PPM. Resolution: 1.0 PPM
Using 3-electrodes electrochemical ammonia sensors, high precision
Support zero and span calibration
One press to restore factory setting, free from the bother of mis-operation
Audible alarm
Two set points of instantaneous alarm
Trend chart display showing the past readings for NH3

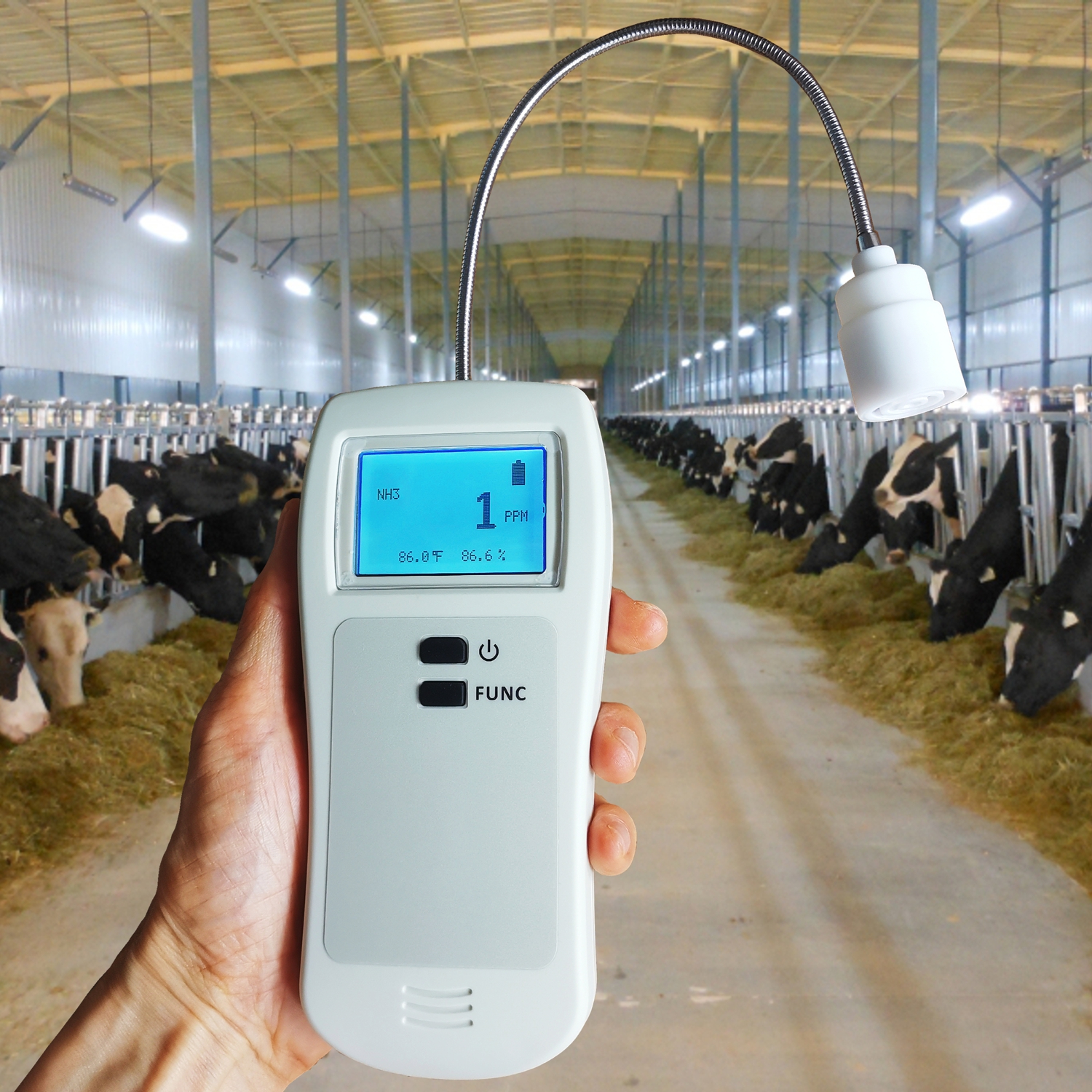

Application in farms/poultry house, livestock and lab animal facilities, liquid ammonia plants, public toilets, septic tanks, loading rack and storage area near the ammonia fluid handling equipment etc.
With temperature and humidity measurement
Only two buttons and easy to operate

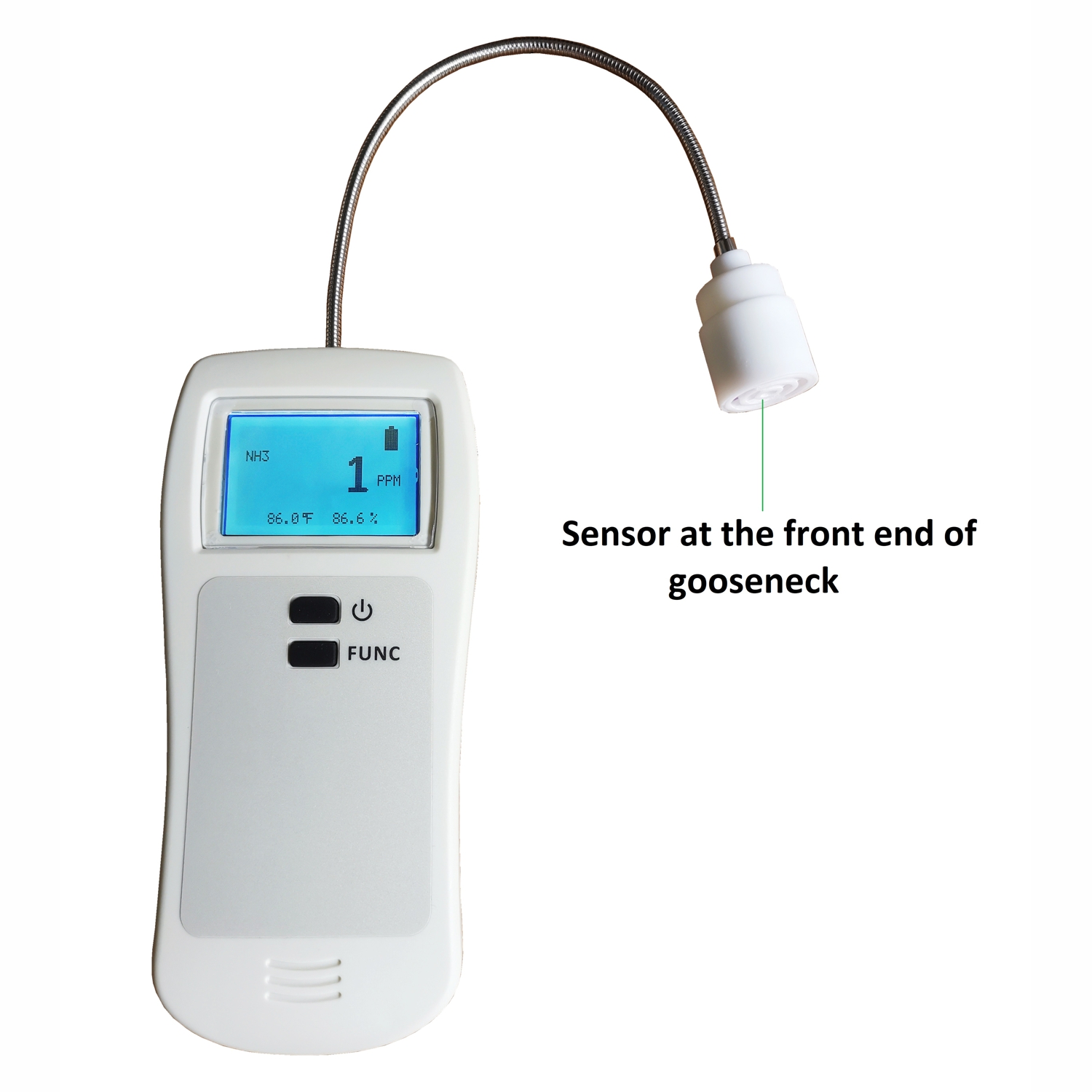

Sensor is placed at the front end of gooseneck for quick measurement
Four AA alkaline batteries
Theory of operation
The Santacary XAR-AP Ammonia Gas Detector uses 3-electrode electrochemical technology for determining the concentration of ammonia in air samples. In diffusion mode, the atmosphere reaches the sensor in the front end of gooseneck by diffusing. Normal air movements are enough to carry the sample to the sensor.

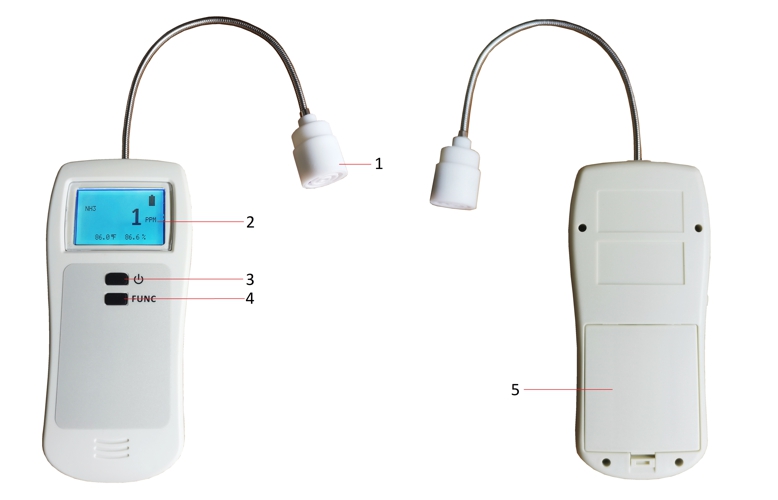

Device
1. Sensor at the front end of gooseneck
2. Liquid crystal display (LCD)
3. Power button
4. Function button
5. Battery compartment cover
Alarm
Low Alarm and High Alarm
XAR-AP has two alarm set points: High Alarm (NH3: 50 PPM) and Low Alarm (NH3: 25 PPM).These set points are factory set and cannot be changed. XAR-AP is equipped with audio alarms to alert you when the ambient gas concentration exceeds one of the two alarm set point. When Ammonia value exceeds the defined high alarm set point (50 PPM), the audio alarm will sound at 6 beeps/sec. When Ammonia value exceeds the defined low alarm set point (25 PPM) but less than the defined high alarm set point, the audio alarm will sound at 4 beeps/sec.
Factory Alarm Set points
Gas | Low | High |
NH3 | 25 PPM | 50 PPM |
Gooseneck pipe
With the sensor placed at the front end of the gooseneck, XAR-AP is able to monitor the NH3 concentration quickly in inaccessible or dangerous places. XAR-AP is also able to detect the leakages of NH3 gas.
Specifications
NH3 Sensor Specification:
Measurement Range | 0 ~500 PPM |
Resolution | 1.0 PPM |
Repeatability | 3% of signal |
Sample Method | Diffusion |
Temperature Range | -20 to 50°C (-4°F ~ 122°F) |
Humidity Range | 10 to 90%RH |
Response Time | <40 seconds |
Temperature Specification
Temperature Range | -10.0~60.0°C (14~140°F) display |
Display Resolution | 0.1°C (0.1°F) |
Display Options | °C/°F switchable |
Accuracy | ±0.5°C (±0.9°F) |
Response Time | 5~30 seconds (device must equilibrate with environment) |
RH Specification
Measurement Range | 0.0~99.9%RH |
Display Resolution | 1%RH |
Accuracy | ±4.5%RH |
Response Time | <8 seconds for 63% of step change |
General Specification
Operating | -10°C to50°C (14°F to 122°F),10~90% RH non-condensing |
Storage | -10°C to 60°C( 14°F to 140°F),<99% RH non-condensing |
Power Supply | Four AA Alkaline Batteries |
Dimensions | 75x400x25mm (2.95x15.35x0.98”) |
Weight | 166 grams (5.86 oz.) without batteries |
