Thermal Imager MHK-TI32

Thermal Imager MHK-TI32

MHK-TI32 Thermal Imager combines non-contact temperature measurement and thermal imaging into one troubleshooting tool to help users quickly find the source of heat-related problems and spot potential faults. In addition to displaying unseen hot and cold spots for instant troubleshooting, the meter provides high and low temperatures, crosshairs to pinpoint specific temperatures.

Features

Sensor: Far infrared thermal sensor array

Sensor Resolution: 32 x 24 Pixels IR Resolution

Field of View (FOV): 55° (H) x 35° (D)

Temperature Range: -40°F to 572°F (-40°C to 300°C)

Temperature Accuracy: ±1.0°C

Temperature Display: Maximum, Minimum, and Center point

Temperature Settings: °F / C°

Emissivity: 3 presets and 1 custom emissivity setting (0.01 to 0.99 adjustable), 0.95 default

Cross-hair display for easy targeting of measurement spot

 Color Pallets: Rainbow 1, Rainbow 2, Rainbow 3, Iron oxide red 1, Iron oxide red 2, Pseudo color 1, Pseudo color 2, White hot, and Black hot.

Auto Power Off (APO): User-selectable for Never, 10, 30, or 60 minutes

Display Type: 2.2" TFT LCD

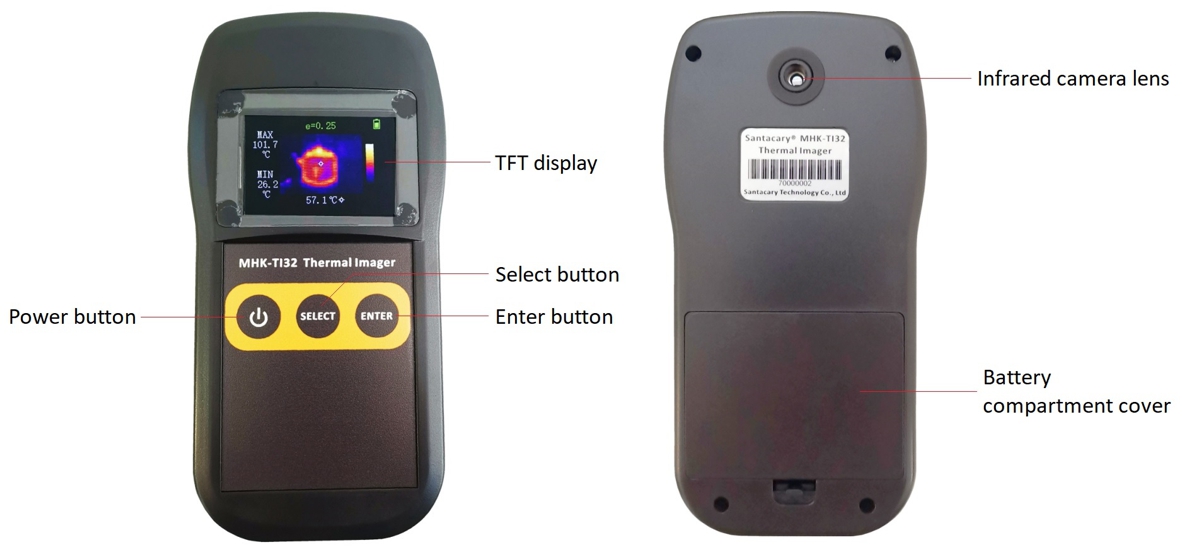

Device

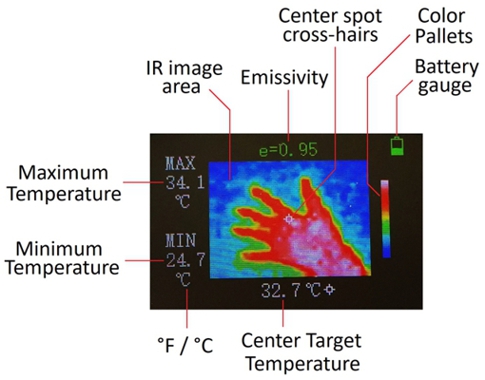

Display Description

Live Display

Point the meter toward the test area and scan as desired. View the IR thermal image on the display. Use the center spot cross-hairs icon for reference only when targeting measurement spots, as parallax errors affect targeting accuracy. The temperature reading on the display represents the measurement of the targeted spot. The live maximum and minimum temperatures are also displayed.

NOTE: Do NOT attempt to measure >572°F (300°C) .

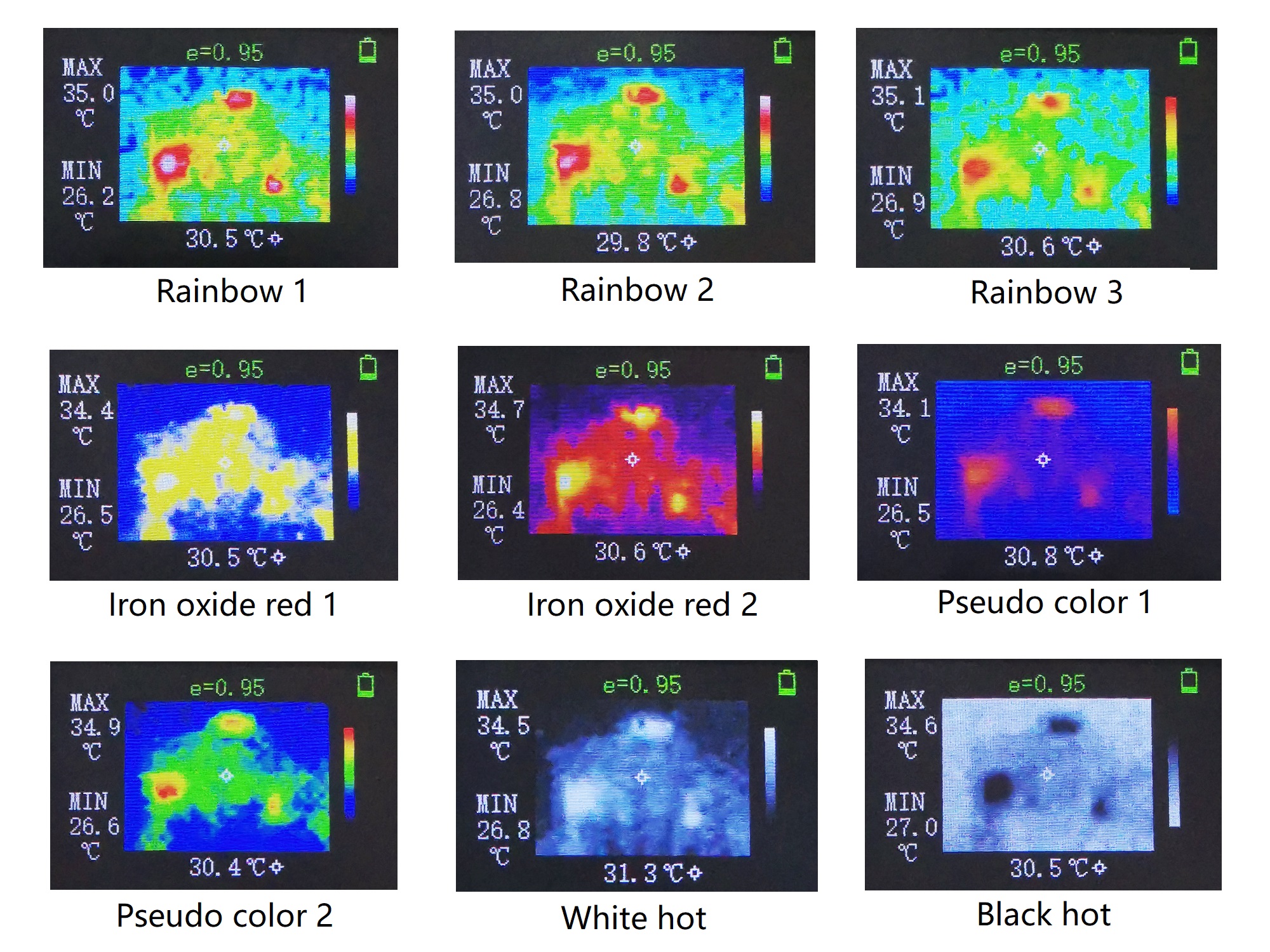

Color Palettes

Press Select Button shortly to change the live color palettes cyclically: Rainbow 1, Rainbow 2, Rainbow 3, Iron oxide red 1, Iron oxide red 2, Pseudo color 1, Pseudo color 2, White hot, and Black hot.

Note that the freeze image can be switched the color palettes.

Specifications

Thermal Imaging Specifications

Temperature Measurement Specification

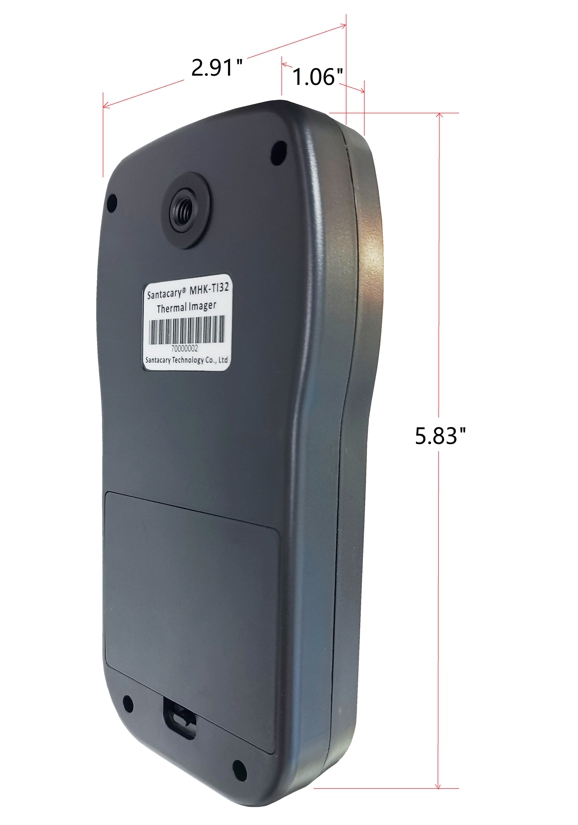

General
