UV AB & Illuminance Meter XAR-UL
UV AB & Illuminance Meter XAR-UL
UV AB & Illuminance Meter XAR-UL
Measurement Principle
XAR-UL has two types of sensors. One is UVA+B sensor, and another is illuminance photo sensor. UVA+B sensor is a schottky photodiode based on gallium nitride material to detect UVA and UVB radiation. It has the characteristics of high sensitivity and high stability.
The illuminance photo sensor is meet CIE (International Commission on Illumination) photopic spectral response. It consists of a very stable, long life silicon photodiode and filter.
Features
UVA+B radiation measurement:
Gallium Nitride Based Material Photovoltaic Mode
High-precision detection, rapid response and operation
Display UVI (Ultraviolet Index) and UVA+UVB radiation intensity simultaneously
Display the maximum UVA+UVB radiation intensity for all-time
Illuminance measurement:
Light-measuring levers ranging from 0 to 600,000 lux, 0 to 55,740 fc (footcandle) repeatedly
Spectral sensitivity close to CIE photopic curve
Accurate and instant response
Simultaneously display the measured values of lux and fc illuminance
Display the maximum illuminance (lux and fc) for all-time
General:
Data-Hold function for holding measuring values.
Easy to read large backlight display
Only two buttons and easy to operate
Four AA Alkaline Batteries
Applications
UVA+UVB radiation measurement:
Monitoring xeroderma pigmentosum UV (ultraviolet) exposure
Testing window film / tint transmission
Monitoring low level UV from household lamps
Testing ground level UV from stadium lighting
Testing ground level UV from stage, nightclub and theater lighting
Monitoring artwork UV exposure
Monitoring archaeological UV exposure
Measuring outdoor UV including shady area UV
Monitoring UVA lamp intensity and aging
Monitoring UV LED (< 360nm)
Monitoring PUVA therapy lamp intensity and aging
Testing UVA in industrial glue curing, tungsten ore identification, fluorescence detection, biopolymerization, oil pollution detection, ore exploration, criminal detective, and textile industry.
Illuminance measurement:
Lighting engineers and specifiers
R&D at light products manufacturers
Inspection of light sources at construction sites, government, educational facilities, stage, nightclub and theater etc.
Maintenance of lights in factories, offices, and hospitals
Electrical product manufacturers
Quality control of light sources at home
Agricultural and forestry industries

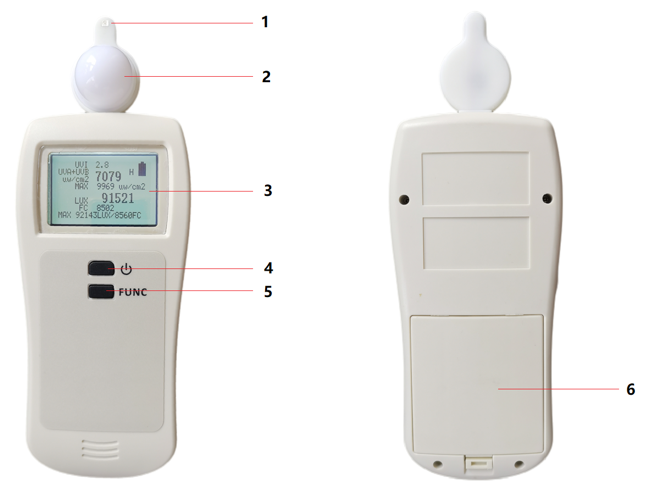

Device
1. UVA+B sensor
2. Illuminance photo sensor
3. LCD display
4. Power button
5. Function button
6. Battery compartment back cover
Ultraviolet Index (UVI)
This meter displays the Ultraviolet Index (UVI) in real time. Following table list the risk of UVI level.
UVI | 0-2.9 | 3.0-5.9 | 6.0~7.9 | 8.0~10.9 | 11+ |
Description | Low danger from the sun’s UV rays for the average person | Moderate risk of harm from unprotected sun exposure | High risk of harm from unprotected sun exposure | Very high risk of harm from unprotected sun exposure | Extreme risk of harm from unprotected sun exposure |
Spectral Response

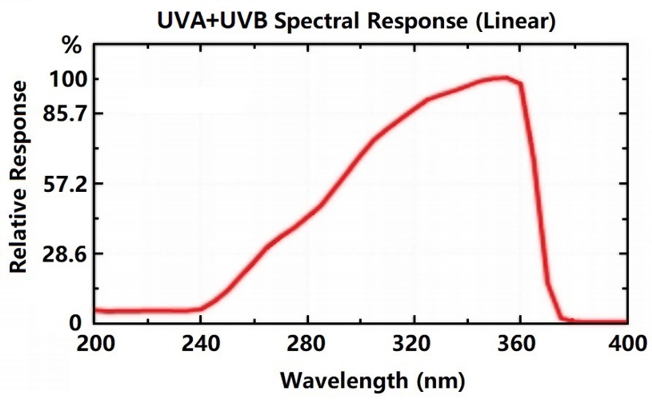

1. UVA+UVB Spectral Response
The peak point (calibration point) of UVA+B sensor spectral response is at 352 nm.
2. Illuminance Spectral Sensitivity Characteristics
To the Illuminance photo sensor, the applied photo diode with filter makes the spectral sensitivity characteristic almost meet CIE (International Commission on Illumination) Photopic curve.
Specifications
UVA+UVB Measurement Range | 0 to 50,000 µW/cm² (50 mW/cm²) |
UV Index Measurement Range | 0 to 130 |
Spectral Detection Range | 240 to 370 nm |
Peak point | 352 nm |
Measurement accuracy | ±4% or ±1 digits |
Resolution | 1.0 µW/cm2 |
Temperature Range | -10 to 50°C (14 to 122°F) |
Humidity Range | 0 to 90%RH |
Illuminance Specification
Measuring Range | 0 to 600,000 lux, 0 to 55,740 fc |
Spectral Response | CIE Photopic (CIE human eye response curve) |
Accuracy | ±5% reading, ±1 digit (<10,000Lux) ±10% reading, ±10 digit (>10,000Lux) |
Repeatability | ±3% |
Photo Detector | One silicon photo diode and spectral response filter |
General
Operating | -10°C to 50°C (14°F to 122°F), 0~90% RH non-condensing |
Storage | -10°C to 60°C (14°F to 140°F), <99% RH non-condensing |

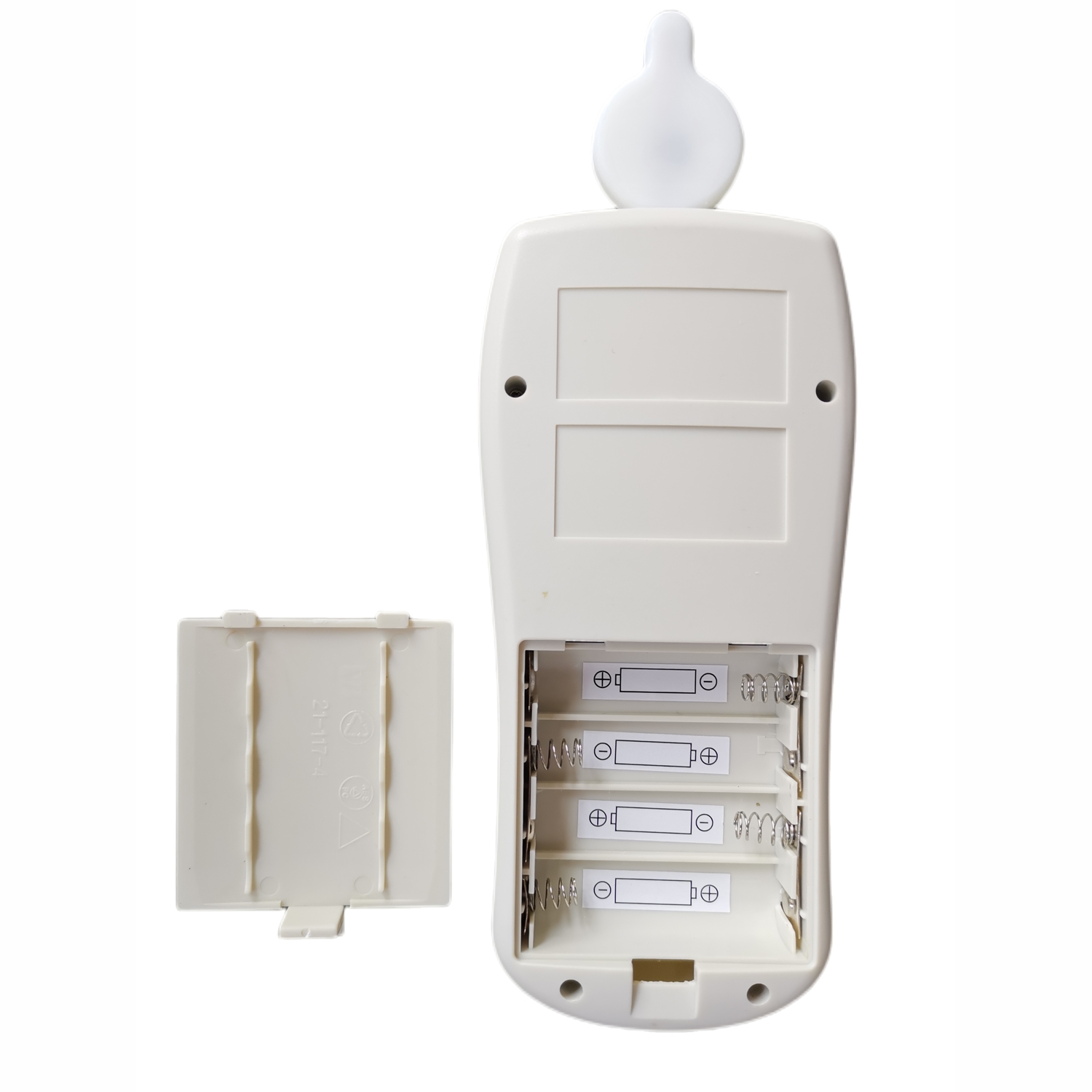

Power Supply | Four AA Alkaline Batteries |
Dimensions | 75x165x25 mm (2.95x6.49x0.98”) |
Weight | 128 grams (4.52 oz.) without batteries |
Recommended illumination
1fc=10.76Lux
Locations | Lux | fc | |
Office | Conference, Reception room | 200~750 | 18~70 |
Clerical work | 700~1,500 | 65~140 | |
Typing drafting | 1,000~2,000 | 93~186 | |
Factory | Visual work at production line | 300~750 | 28~70 |
Inspection work | 750~1,500 | 70~140 | |
Electronic parts assembly line | 1,500~3,000 | 140~279 | |
Packing work, Entrance passage | 150~300 | 14~28 | |
Hotel | Public room, Cloak room | 100~200 | 9~18 |
Reception | 200~500 | 18~47 | |
Cashier | 750~1,000 | 70~93 | |
Store | Indoors Stairs Corridor | 150~200 | 14~18 |
Show window, Packing table | 750~1,500 | 70~140 | |
Forefront of show window | 1,500~3,000 | 140~279 | |
Hospital | Sickroom, Warehouse | 100~200 | 9~18 |
Medical Examination Room | 300~750 | 28~70 | |
Operating room, emergency treatment | 750~1,500 | 70~140 | |
School | Auditorium, Indoor Gymnasium | 100~300 | 9~28 |
Class room | 200~750 | 18~70 | |
Laboratory, Library, Drafting room | 500~1,500 | 47~140 | |
